SM-211Y
En stock
Description

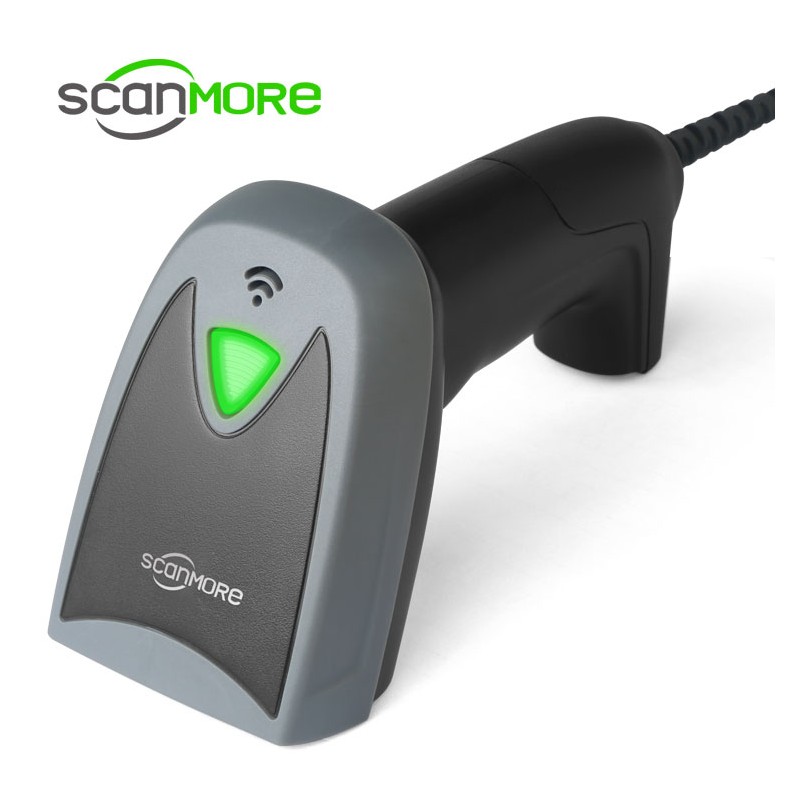

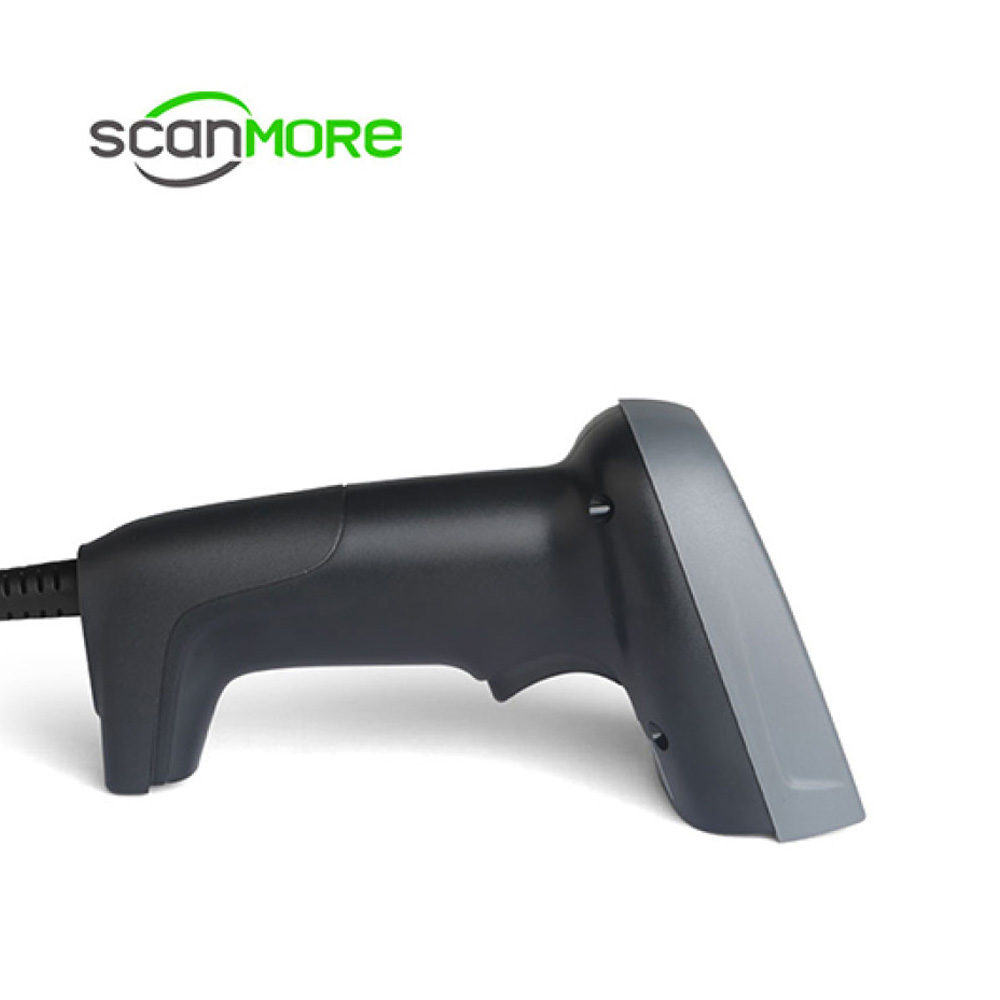

- SM-211Y Douchette et lecteur code à barre 1D/2D image liner avec support (interface USB)
- Il est recommandé pour le marché tunisien, cette douchette est vendue partout en TUNISIE
- SM-211Y douchette fiable et professionnel avec son ergonomie
0
| PHYSICAL CHARACTERISTICS | |
| Material | ABS+PVC+PC |
| Size | L*W*H: 165mm×95mm×70mm |
| Power Supply | DC 5V/300mA |
| Weight | 120±5g (without cable) |
| PERFORMANCE | |
| Interface Supported | USB, RS-232 |
| Sensor | Flat CMOS Sensor |
| Light Source | Red LED lights + white LED light |
| Processor | 32-bit MCU |
| Resolution | Code39 5mil, QR 8.7mil, PCS45% |
| Depth of Field | 5MIL CODE39: 5–12 CM 15MIL CODE39 : 4–25 CM 10MIL CODE93 : 4–21 CM 15MIL UPC/EAN: 4–25 CM 20MIL QR : 4–25 CM |
| Decoding Speed | 200 scans/sec |
| Scanning Method | Trigger buttons, Automatic successive scanning |
| Scanning Area | 5 * 5 cm² – 30 * 30 cm² |
| Print Contrast | 35% |
| Scan Angles | Roll 0-360°, Pitch±65°, Yaw±60° |
| Decode Capability | Codabar, Code11, Code39/Code93, UPC/EAN, Code128/EAN128, InterLeaved2of5, Matrix2of5, MSI CODE, Standard2of5, QR CODE |
| Notification | Buzzer, LED indicator |
| ENVIRONMENTAL | |
| Operating Temperature | 0 oC to 50 oC (32 oF to 122 oF) |
| Storage Temperature | -20 oC to 70 oC (-4 oF to 158 oF) |
| Relative Humidity | 20% to 95% (Non-condensing) |
| Shock Resistance | 1.5m free fall on concrete surface |
| Electrostatic protection | 15KV air discharge |
| IP grade | IP 54 |
| RELIABILITY | |
| Life Time | |
| Light Source | 40,000 hours |
| MTBF(Calculated) | 80,000 hours |
| Thermal Shock | |
| High Temp. | 60 oC (140 oF) |
| Low Temp. | -20 oC (-4 oF) |
| Cycle time | 30 minutes for high temp.,30 minutes for low temp. Cycles 24 cycles |
| Mechanical Shock | 2000G, 0.7ms, 3 axes |
